Transmission errors can be divided on the base of the media through which transmission is taking place. Coupler Errors produce disturbances in transmission.

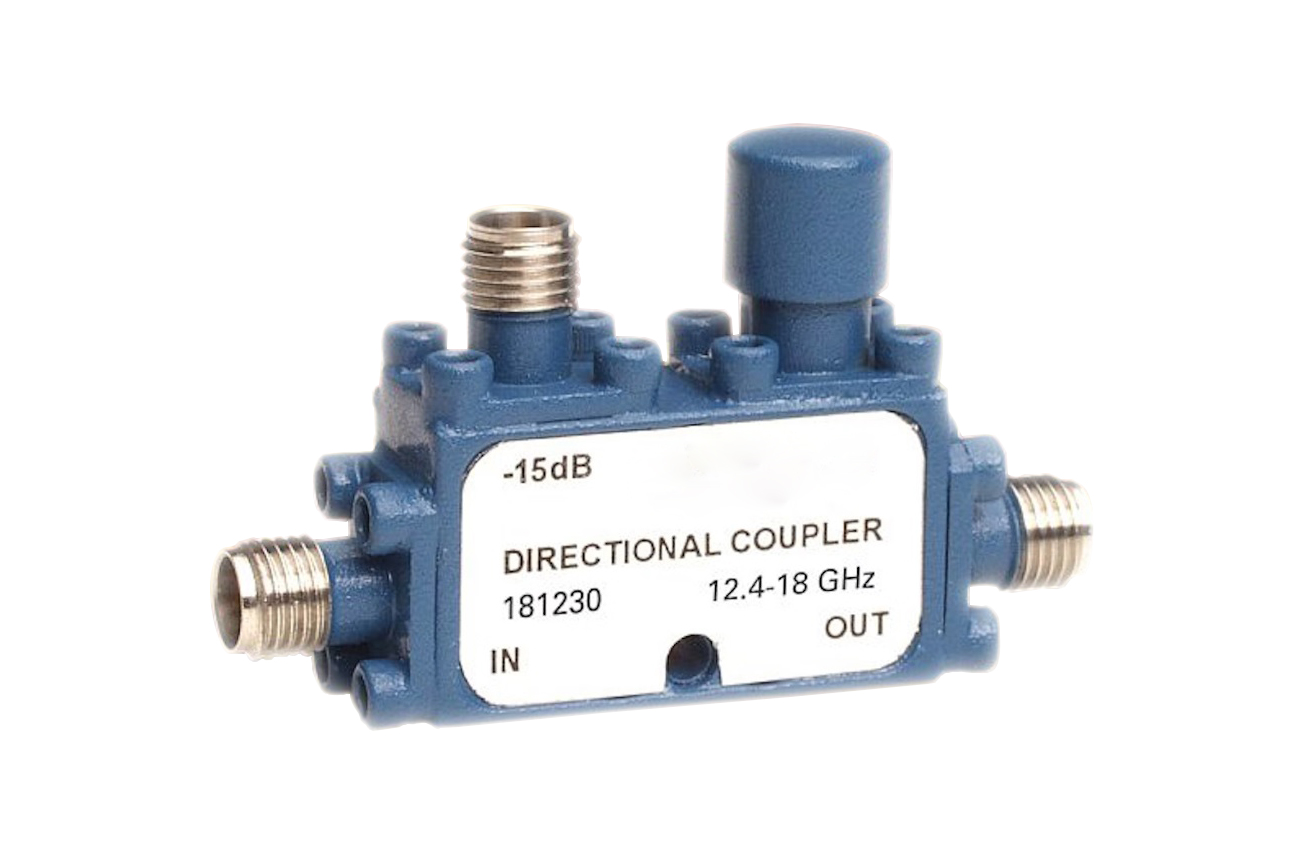

What is a Coupler
In air traffic control (ATC) services, a coupler is an electronic device used to merge two or more radar signals into a single, composite image on a display screen.
What is a Coupler Error in the context of Air Traffic Control Services?
A coupler error in air traffic control (ATC) services is an issue that occurs when the coupler is not functioning properly. A coupler error can result in incorrect or incomplete information being displayed on the ATC's display screen, which can negatively impact the efficiency and safety of air traffic control operations.
.jpg?width=833&height=374&name=Coupler%20(1).jpg)

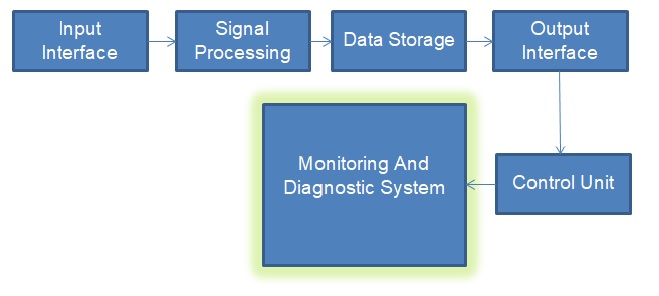

Block Diagram of a Coupler
A block diagram of a coupler in air traffic control (ATC) services typically includes the following components
Input Interface
This component receives signals from various sources, such as aircraft transponders, ground-based radar systems, or other data sources.
Signal Processing
This component processes the received signals, converting them into a standardized format, filtering out the noise, and performing error correction as needed.
Data Storage
This component stores the processed data for later retrieval and analysis.
Output Interface
This component provides the processed data to other air traffic control systems and displays, such as flight data processing systems, controller working positions, or data distribution systems.
Control Unit
This component manages the overall operation of the coupler, coordinating data input and processing, managing data storage, and controlling the output of data to other systems.
Monitoring and Diagnostic System
This component monitors the operation of the coupler and provides diagnostic information to air traffic service electronics personnel (ATSEP) in the event of an error or failure.
The exact configuration of a coupler block diagram may vary depending on the specific design and requirements of the air traffic control system in which it is used. However, these components form the core of most coupler systems and provide the key functions needed to receive, process, store, and output air traffic control data
Types of Couplers in Use
There are two main types of couplers used in ATC
Hard Coupler
This type of coupler physically connects the radar antenna and the display screen. The merged image is displayed on the screen in real-time, providing the ATC with a comprehensive view of all radar targets in the coverage area.
Soft Coupler
A soft coupler uses software to merge the radar signals from multiple sources, eliminating the need for physical connections. This type of coupler provides a virtual display of multiple radar sources, which can be displayed on a single screen or multiple screens.
Both hard and soft couplers are used in ATC to improve the efficiency and safety of air traffic control operations, by providing a consolidated view of all radar targets in the coverage area.
There are various reasons why a coupler error can occur, such as technical malfunctions, software glitches, or electrical interference. In some cases, a coupler error can result in a complete loss of radar data, making it difficult for the ATC to monitor the movement of aircraft in the coverage area.
Therefore, it is important for ATC systems to have backup systems in place and to conduct regular maintenance checks to minimize the risk of coupler errors. In the event of a coupler error, ATC personnel can switch to backup systems or manual procedures to ensure the safe and efficient operation of air traffic control services.
Impact of Coupler Error on Air Traffic Control Services
A coupler error in air traffic control (ATC) services can have a significant impact on the safety and efficiency of air traffic operations. Some of the impacts of a coupler error include
Delays and disruptions
A coupler error can cause delays and disruptions in air traffic operations, leading to flight cancellations, diversions, or long wait times for passengers.
Safety concerns
A coupler error can impact the accuracy and reliability of information about aircraft position and movement, which is critical for ensuring safe separation between aircraft in flight.
Increased workload for air traffic controllers
If a coupler error leads to inaccurate or incomplete information about aircraft position and movement, air traffic controllers may need to rely on manual tracking methods, which can increase their workload and reduce their situational awareness.
Reduced efficiency of air traffic control systems
If a coupler error leads to inaccurate information or reduced functionality of air traffic control systems, this can impact the efficiency of air traffic operations and increase the risk of delays or disruptions.
Reputational damage
A coupler error can also impact the reputation of the air traffic control service provider, potentially leading to a loss of trust from the public, airlines, and other stakeholders.
To minimize the impact of coupler errors on air traffic control services, air traffic service electronics personnel (ATSEP) must have the necessary training, knowledge, and resources to diagnose and correct coupler errors quickly and effectively. This includes regular maintenance, software updates, and hardware replacements, as well as contingency planning and backup systems to ensure continuity
How Coupler Error is depicted to ATSEP
When a coupler error occurs in air traffic control (ATC) services, it is typically depicted by the air traffic service electronics personnel in several ways
Error message
An error message may appear on the ATC display screen indicating that there is an issue with the coupler. This message can provide information about the nature of the error, such as a software glitch or a technical malfunction.
Incomplete or incorrect information
The display screen may show incomplete or incorrect information, such as missing radar targets or inaccurate data about the position and movement of aircraft.
Loss of radar data
In some cases, a coupler error can result in a complete loss of radar data, causing the display screen to be blank or show only limited information.
Alarm
An alarm may sound to alert the ATC personnel to the presence of a coupler error.
ogs
The coupler system may generate logs that provide information about the error, including the time and date of the error and any relevant details about the issue.
Digital Signal Processing in Coupler
Digital Signal Processing (DSP) is an important technology used in coupler systems in air traffic control (ATC) services. DSP involves the use of digital algorithms to process signals received by the radar antenna, allowing the coupler to merge multiple signals into a single, composite image on a display screen.
DSP enables the coupler to perform complex signal processing operations in real time, making it possible to detect and track aircraft and display their position and movement accurately and efficiently. The use of DSP also allows the coupler to reject interference from other sources and filter out noise, improving the quality of the radar image.
In ATC services, DSP technology is essential for ensuring the safe and efficient operation of air traffic control. By providing accurate and real-time information about aircraft position and movement, DSP-based coupler systems help ATC personnel to make informed decisions and to maintain situational awareness at all times. Overall, the use of DSP in coupler systems in ATC services is a key factor in improving the accuracy, efficiency, and safety of air traffic control operations.
What are the Causes of Coupler Error
There are several causes of coupler errors in air traffic control (ATC) services, including
Hardware failures
Hardware failures, such as a malfunctioning antenna or processor, can result in coupler errors.
Software glitches
Software glitches, such as bugs in the coupler software or incorrect configurations, can also cause coupler errors.
Interference
Interference from other sources, such as other radar systems or radio signals, can cause coupler errors by introducing noise or distorting the radar signals.
Power supply issues
Issues with the power supply, such as fluctuations or outages, can cause coupler errors by disrupting the normal operation of the coupler system.
Environmental factors
Environmental factors, such as extreme temperatures or weather conditions, can also cause coupler errors by affecting the performance of the coupler components.
Human error
Human error, such as incorrect configurations or improper maintenance, can also result in coupler errors.
It's important to note that coupler errors can occur suddenly and without warning, so it's essential for air traffic service electronics personnel to have systems and procedures in place to detect and respond to coupler errors quickly and effectively. This helps to ensure the safe and efficient operation of air traffic control services and to minimize the impact of coupler errors on air traffic operations.
Steps required to be taken by Air Traffic Service Electronics Personnel for Rectification of Coupler Error
Troubleshooting for a coupler error in air traffic control (ATC) services typically involves several steps, which are performed by air traffic service electronics personnel (ATSEP)
Identification of the error
The first step is to identify the specific cause of the coupler error, which may involve reviewing error logs, checking hardware and software configurations, or conducting diagnostic tests.
Isolation of the issue
Once the cause of the error has been identified, the next step is to isolate the issue to minimize the impact on air traffic operations, such as switching to backup systems or disabling certain components of the coupler system.
Analysis of the issue
Air traffic service electronics personnel will then analyze the issue to determine the root cause of the error and to identify the appropriate steps for rectifying it. This may involve reviewing technical specifications, consulting with experts or vendors, or conducting further diagnostic tests.
Correction of the issue
Based on the analysis, air traffic service electronics personnel will take the necessary steps to correct the issue, such as repairing or replacing hardware components, updating software, or reconfiguring systems.
Testing and verification
Once the issue has been corrected, air traffic service electronics personnel will conduct tests and verification procedures to ensure that the coupler system is functioning properly and is providing accurate and real-time information about aircraft position and movement.
Return to normal operations
Finally, air traffic service electronics personnel will return the coupler system to normal operations, ensuring that air traffic control services can resume safely and efficiently.
The factors responsible for a coupler error in air traffic control (ATC) services can vary, but some common causes include hardware failures, software malfunctions, configuration errors, and environmental factors (such as interference or extreme weather conditions). To rectify these factors, air traffic service electronics personnel (ATSEP) may take the following steps
Hardware failures
If a hardware component is found to be the cause of the coupler error, air traffic service electronics personnel will repair or replace the component to restore proper function.
Software malfunctions
If a software issue is causing the coupler error, air traffic service electronics personnel may update the software or reconfigure the system to correct the problem.
Configuration errors
If a configuration error is causing the coupler error, air traffic service electronics personnel will adjust the configuration to ensure proper operation of the coupler system.
Environmental factors
If environmental factors such as interference or extreme weather conditions are causing the coupler error, air traffic service electronics personnel may adjust the system's settings or relocate the equipment to minimize the impact of the environmental factors.
To rectify the factors responsible for a coupler error, air traffic service electronics personnel must have a good understanding of the coupler system and its components, as well as the necessary training, knowledge, and resources to diagnose and correct the error. This includes access to technical documentation, diagnostic tools, and spare parts. By taking a systematic and methodical approach, ATSEP can rectify the factors responsible for a coupler error and restore the safety and efficiency of air traffic control services.
SkyRadar's System Monitoring & Control Solution
SkyRadar is continuously embracing new trends in its system monitoring & control solution. The Use-cases on errors and system malfunctions, described in this series are or will be implemented in SkyRadar's SkySMC training system. Implementations are consisting of
- real hardware like training radars, transmitters, receivers, UPSs, networks,
- virtualized hardware like virtual servers, networks, applications
- simulated solutions like various tower and radar designs
- or a mixture of all three
SkySMC - SkyRadar’s System Monitoring and Control Suite is a pedagogically enhanced, fully operational monitoring & control tool. We have optimized it to cater for the ATSEP-SMC training compliant to EASA's Easy Access Rules for ATM-ANS (Regulation (EU) 2017/373) and ICAO Doc 10057.
SkyRadar provides SkySMC as a complete laboratory in a turn-key approach, or as a service.
SkySMC is not a simulator, but a fully operational open monitoring system. It comes by default with a server including various virtualized applications and virtualized servers, but also connects to simulated systems. In addition, there are various hardware extensions available including training infrastructures, monitorable training radars, or even complete ATM systems, all connected to the System Monitoring & Control solution.
SkyRadar's System Monitoring & Control training system can be easily blended into distance learning solutions.
