PSR & SSR Simulator


The PSR & SSR Simulator is a sophisticated simulation software which is delivered on a rack server. Learners can access the simulations through any recent generation HTML5-enabled browsers on any operating system.  Computers get access the LAN or Wireless LAN, enabled through the SkyRadar Cloud Server.

It allows for

  • plug-and-play availability in all SkyRadar CloudServer based infrastructures
  • no installation or maintenance of the software on the student computers (apart from exceptional cases, e.g. in the context of ILS, when voice communication is required)
  • 100s of concurrent users, working simultaneously on the same applications and radars (enabled through a private cloud server, located at the customer site).
  • drastically reduces system costs per user and makes SkyRadar the most economical training system (using real radars!) in the world
  • allows for easy and effortless expansion of the system (e.g., when adding additional primary or secondary radars)
  • accelerates the learning curve of students, as they are accustomed to the comfortable SkyRadar learning environment

The hardware server comes as a 19 Zoll Rack Mount Server Case. Its features are as follows or equal / better (in offers we will always state the actual version)

  • CPU Ryzen 9 5900 X
  • Ram 32 GB Corsair DDR4 3600
  • Mainboard Asus Pro Art B550 Creator
  • Gigabyte Power Unit 750 Watt
  • Hard Disk: configured on requirement
  • Graphics Board AMD Gaming Radeon RX 550 2 GB GDDR5 Low Level


Primary Surveillance Radars

The simulator operates the following primary surveillance modes:

  • Pulse
  • Constant Wave (CW) / Doppler
  • Frequency Modulated Constant Wave (FMCW)
  • Synthetic Aperture Radar (SAR)
  • inverse Synthetic Aperture Radar (iSAR)

Receiver with STC, Amplification and Threshold Controls


Secondary Surveillance Radars

FreeScopes also serves as GUI for secondary surveillance radar. It provides the following user interfaces:

  • PPI Scope with information of key aircraft data as 3rd dimension (Visualization of DF17 Squitter Signal)
  • Visualization of interrogation and downlinks as pulse diagrams as well as in a table

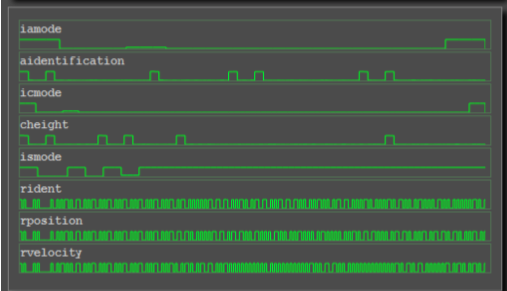

ADS-B Plan-Position-Indicatior     ADS-B-pulse-diagram with uplink and downlink

Using FreeScopes as a standardized user interface for Pulse, Doppler, CW, FMCW and SAR / iSAR simulators, it provides all important scopes and control elements for the application.

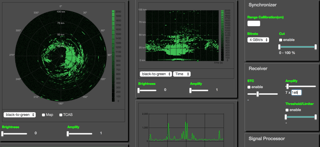

  • Scopes: A-Scopes, B-Scopes, Plan-Position-Indicator for PSR,  Synthetic Aperture Radar Screen (SAR), inverse SAR (iSAR)
  • PPIs: SSR Mode A/C and Mode S, ADS-B, Collision Avoidance (TCAS) and Minimum Height Alert
  • Pulse Diagrams and table Sidelobe Surpression, uplink format (UF), downlink format (DF), DBS registers
  • Pseudo-Pilot Screens

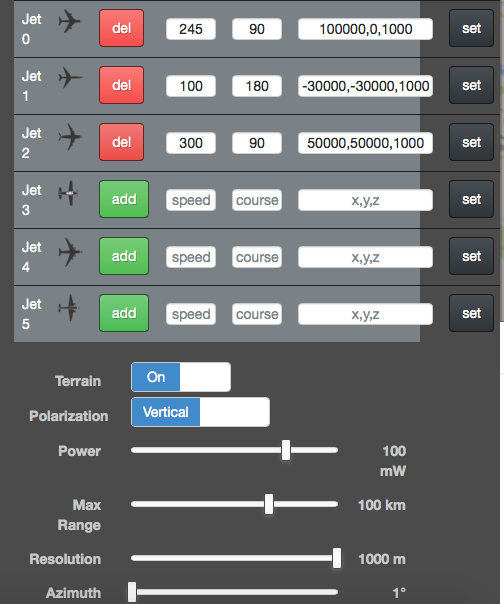

SkyRadar-Simulator-Banner-1.png   Pseudo-Pilot-Position SkyRadar Simulator
