Rotary Tripod

Part #: SkyRadar PSR-Rotary Tripod-Ver.5.0 Get a PDF version of this webpagePDF
Get a Quote!
Description

SkyRadar Modular Radar Training System - Rotary Tripod
SkyRadar Modular Radar Training System – Rotary Tripod

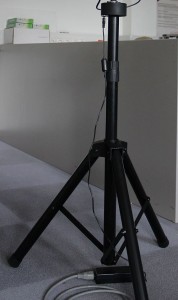

To allow for 360° (endless) PPI rotation, swivel modes or target tracking, SkyRadar provides a rotary tripod, equipped with a slip ring for electrical transmission and powered by a DC Motor. The unit also includes a compass.

Parts

  • Tripod with implemented DC-Motor and slip ring
  • Power Supply Unit with DC cable
  • AC-Supply cable
  • Compass
  • License to use the motor control unit which is embedded in the base unit

Prerequisites

Extensions

Hardware specification

Design I²C
Data update frequency: 75 Hz
Buffer 45 samples
Complete refresh of the buffer every 640 milliseconds
Rawdata from the magnetometometer and accelerometer available every 13,3 milliseconds
Measured movements x, y, z orthogonal positions as well as pitch and roll movements
Number of sensors 3
Resolution 0,1°(= 3600 Measurement points per revolution)

Table: Operative characteristics of the Compass

SkyRadar Modular Radar Training System - RotaryTripod

SkyRadar's Rotary Tripod is an extension to the SkyRadar Base Unit. It allows to rotate in swivel or endless mode, e.g. for PPI-Scope monitoring or MTI

Brand: SkyRadar Modular Radar Training System

Manufacturer: SkyRadar

Model: SkyRadar PSR-Rotary Tripod-Ver.5.0

Product ID: SkyRadar PSR-Rotary Tripod-Ver.5.0

price on request, New
